Female Straight Field Assemble, Terminal Locking Screw Type, Unshielded

Connector：M12
Gender：Female
Coding：A,B,D
Locking Type：Fix Screw
Mounting Type：Field Assemble
Part No：M12-X**-ST0-F04-PS*
                X:A,B,D Coding
                **:03,04,05...(Pin)
                  *:1=Cable OD4.0~6.0MM
                  *:2=Cable OD6.0~8.0MM...
Technical Data
Standard
IEC61076
Ambient Temperatur
-25℃~+105℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤10mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 銅鍍金
Connector Nut/Screw
Copper Alloy With Nickel Plated 銅合金鍍鎳
Seal/O-Ring
FKM 氟橡膠
Shielding
UnShielded 非屏蔽
Contacts Termination
Terminal Locking Screw 鎖螺釘連接
Electrical Data & Mechanical Date
Contacts Pin
3/4Pins5Pins8Pins
Rated Current
4A4A2A
Voltage AC/DC
250V60V30V
Wire Range AWG/mm2
22/0.3422/0.3424/0.25

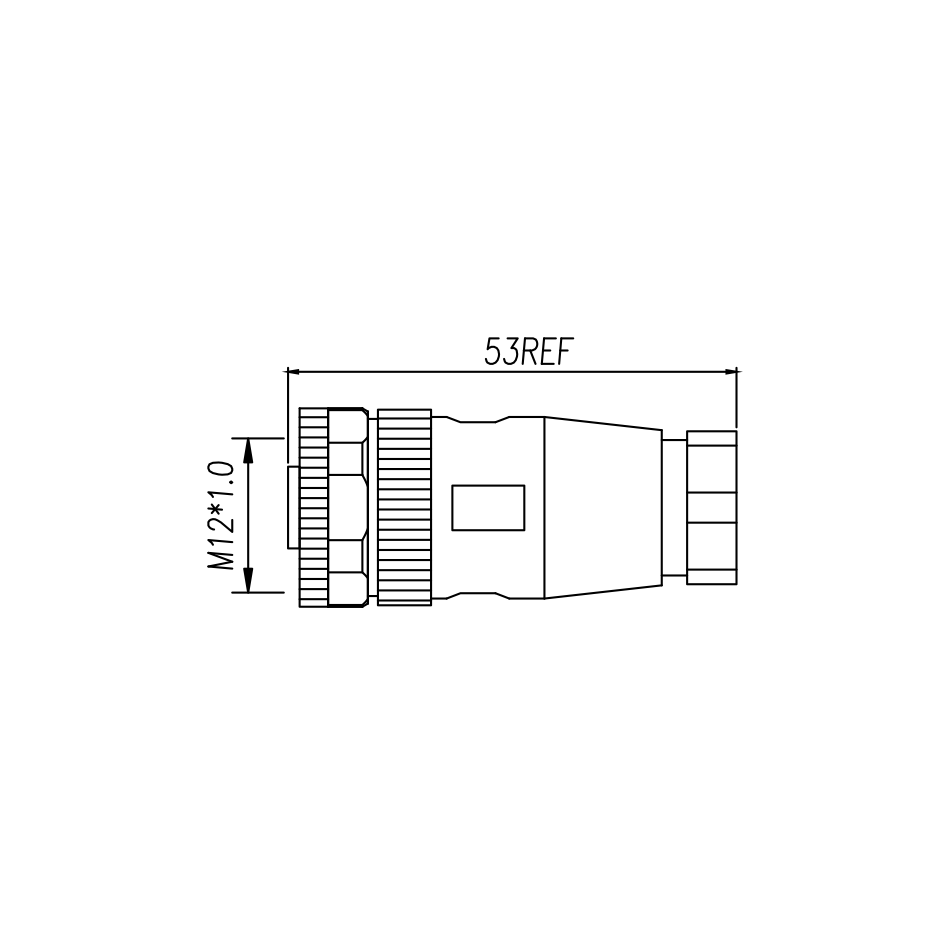

Dimensions
Specification Selection Table
