M8 Male Straight Field Assemble, Terminal Locking Screw Type, Unshielded

Connector Series：M8

Gender：Male

Coding：A

Locking Type： Fix Screw

Mounting Type: Field Assemble

Part No：M08-X**-ST0-M04-PS1

              X:ACoding(A扣)

              **：03, 04(Pin)

               PS1:1=Cable OD3.5-5.0MM


Technical Data
Standard
IEC61076
Ambient Temperatur
-25℃~+105℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤10mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
Plastic 塑膠（PA）
Connector Contacts
Copper Alloy With Gold Plated 銅鍍金
Connector Nut/Screw
Copper Alloy With Nickel Plated 銅鍍鎳
Seal/O-Ring
FKM 氟橡膠
Shielding
Unshielded 非屏蔽
Contacts Termination
Terminal Locking Screw 鎖螺釘連接
Electrical Data & Mechanical Date
Contacts Pin
3Pins4Pins
Rated Current
3A3A
Voltage AC/DC
50V/60V50V/60V
Wire Range AWG/mm2
24/0.2524/0.25

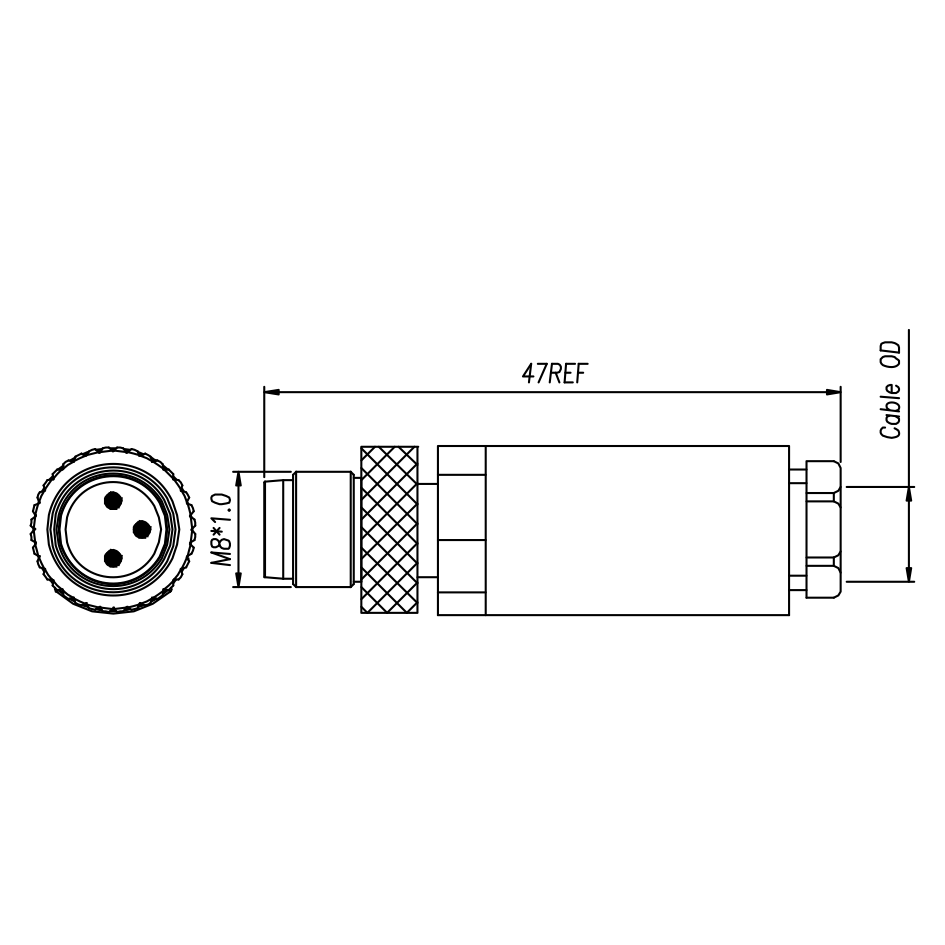

Dimensions
Specification Selection Table
PDF Page



3D Model
