Details

WJ15RD-THR-2.54

UL/CUL
Use Group
BCD
Rate Voltage [V]
150--
Rated Current [A]
5--
Wire Range [AWG]
-
Dielectric Voltage-Withstand
1.3KV
IEC
Overvoltage Category
IIIIIIII
Contamination Class
322
Rated Voltage [V]
32160160
Rated Current [A]
666
Impulse withstand voltage [KV]
2.52.52.5
Conductor cross section[solid/flexible] [mm2]
-
Material
Insulation Material
LCP
Flame relardant rating
UL94V-0
Conductor Material
Copper alloy
Plating of conductor surface
Sn plated
Other Data
Pitch/Poles [mm]/[P]
2.54/2-24
Stripping Length [mm]
-
Screw/Torque(Max)[N.m]
-
Operating temperature [℃]
-40℃~+130℃
Soldering temperature
285℃/10S
Pin dimensions [mm]
0.64*0.64
PCB Hole Diameter [mm]
?1.2

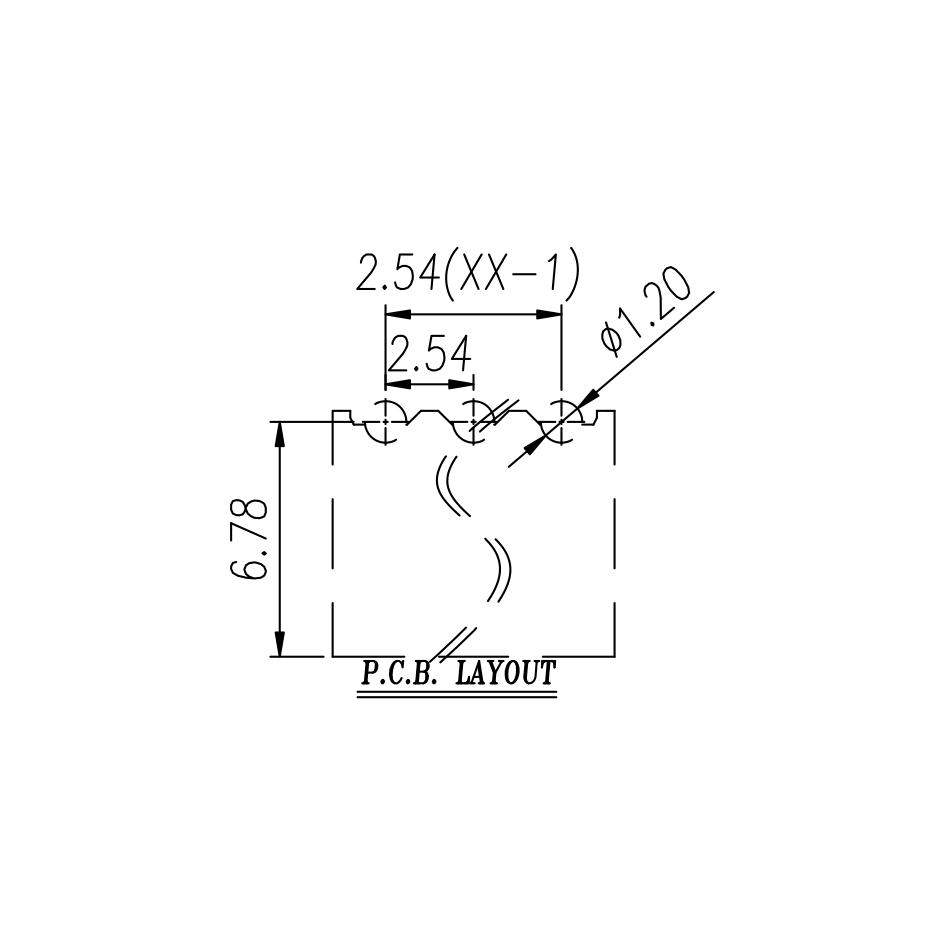

PCB Opening diagram
Dimensions
Accessories
PDF Page



3D Model
