Product center
TERMINAL BLOCK
Din Rail Terminal block
Circular Connector
Module
CNC lathe precision machining
    Filter
  • Type
  • Name
  • spacing
  • certified
  • voltage
  • electric

Hot News

展會邀約|2025【工業自動化展】，萬捷在5.1H-B001展位恭候您的蒞臨！

展會邀約|2025【工業自動化展】，萬捷在5.1H-B001展位恭候您的蒞臨！

Details

WJ2KHVM-7.62

UL/CUL
Use Group
BCD
Rate Voltage [V]
600600-
Rated Current [A]
2020-
Wire Range [AWG]
30-12
Dielectric Voltage-Withstand
2.2KV
IEC
Overvoltage Category
IIIIIIII
Contamination Class
322
Rated Voltage [V]
100010001000
Rated Current [A]
161616
Impulse withstand voltage [KV]
886
Conductor cross section[solid/flexible] [mm2]
0.2-2.5
Material
Insulation Material
PA66
Flame relardant rating
UL94V-0
Conductor Material
Copper alloy
Plating of conductor surface
Sn plated
Other Data
Pitch/Poles [mm]/[P]
7.62/2-12
Stripping Length [mm]
8
Screw/Torque(Max)[N.m]
M3/0.5
Operating temperature [℃]
-40℃~+105℃

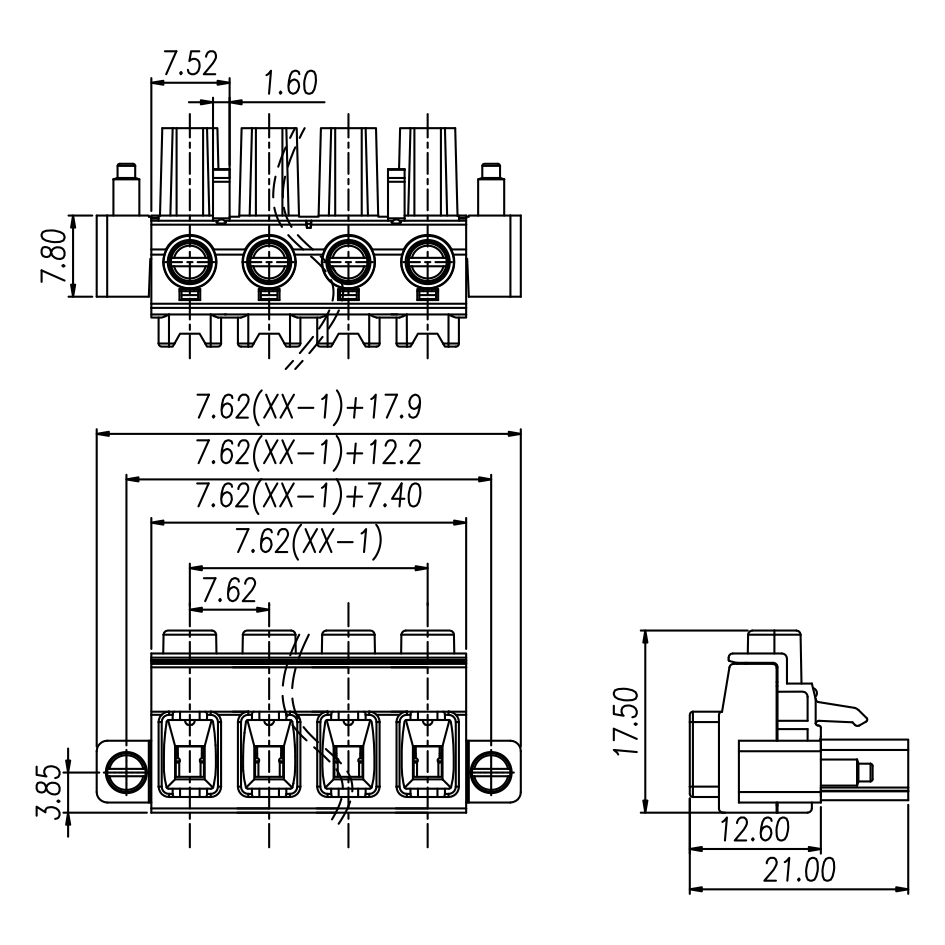

Dimensions
Accessories
PDF Page



3D Model
