Details

M8 Male Panel Mount, PCB Type, Front Fastened

Connector Series：M8

Gender：Male

Coding：A, B

Locking Type： Fix Screw

Mounting Type: Front Fastened

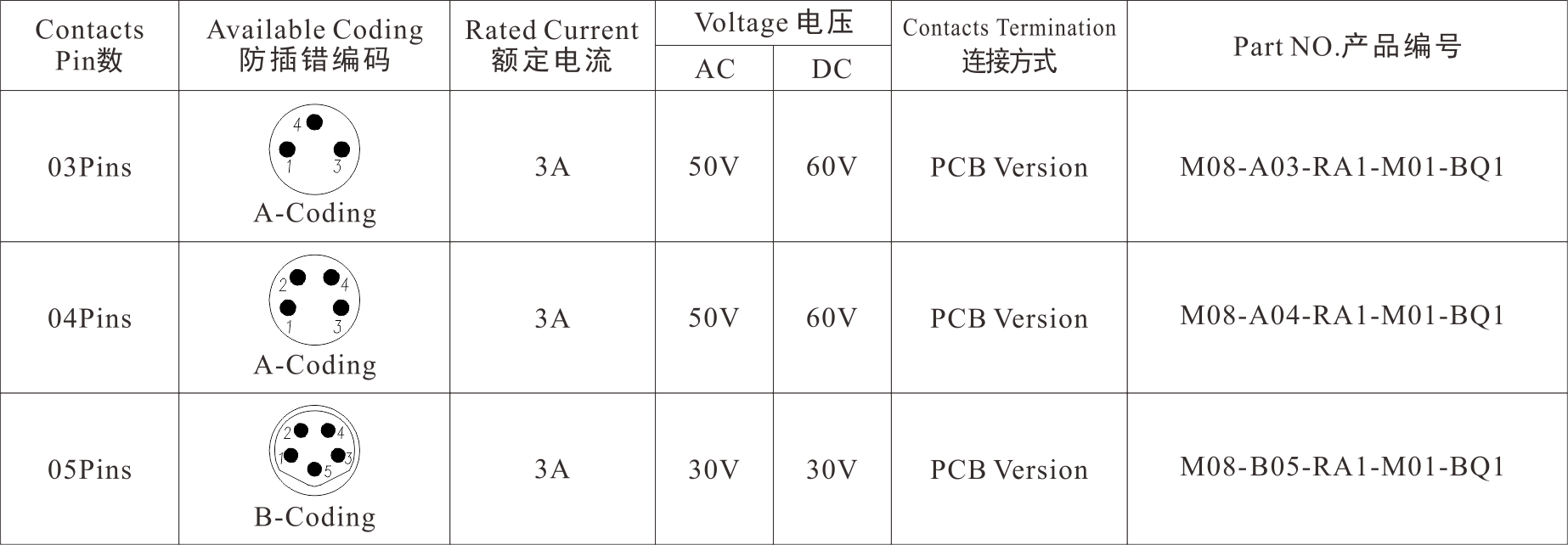

Part No：M08-X**-RA1-M01-BQ1

              X:A, B Coding

              **：03, 04, 05, 06, 08 (Pin)

              BQ1:1=M8X1.0(OD1)

Technical Data
Standard
IEC61076-2-104
Ambient Temperatur
-25℃-+85℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤5mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 銅鍍金
Connector Nut/Screw
Copper Alloy With Nickel Plated 銅鍍鎳
Seal/O-Ring
FKM 氟橡膠
Shielding
Shielded 屏蔽

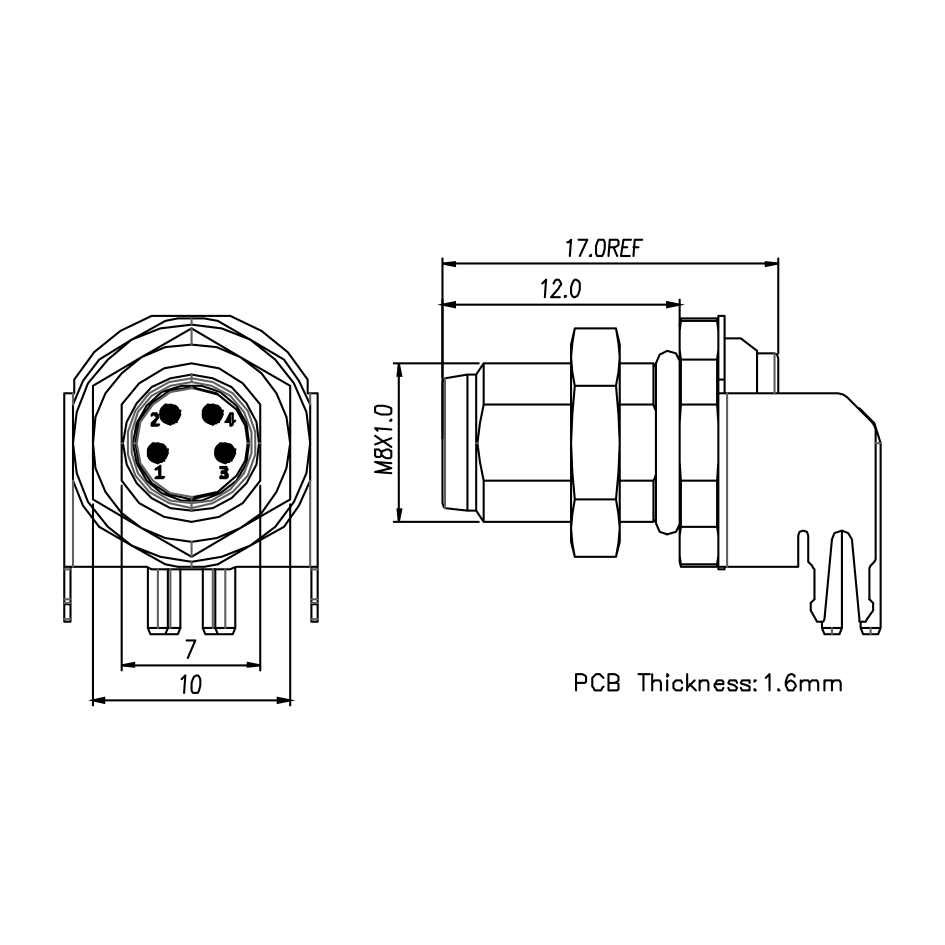

Dimensions
PDF Page



3D Model
