GUT6-102

CUL Technical Data (UL1059）
Use Group
BCD
Rated Voltage [V]
600600600
Rated Current [A]
50505
Wire Range
24-8
IEC Technical Data (IEC 60947-7-1)
Overvoltage Category
III
Contamination Class
3
Rated Voltage [V]
1000V
Rated Current [A]
41A
Impulse withstand voltage
8KV
Conductor cross section
Soild
0.2-10.0mm2
Flexible
0.2-6.0mm2
Flexible with ferrule
0.25-6.0mm2
Material
Insulation Material
PA66
Flame relardant rating
UL94V-0
Conductor Material
Copper alloy
Plating of conductor surface
Sn plated
Other Data
Length/Height/Thickness [mm]
44.0/42.0/8.2
Stripping Length [mm]
10-11
Screw/Torque(Max)[N.m]
M4/1.2-1.5

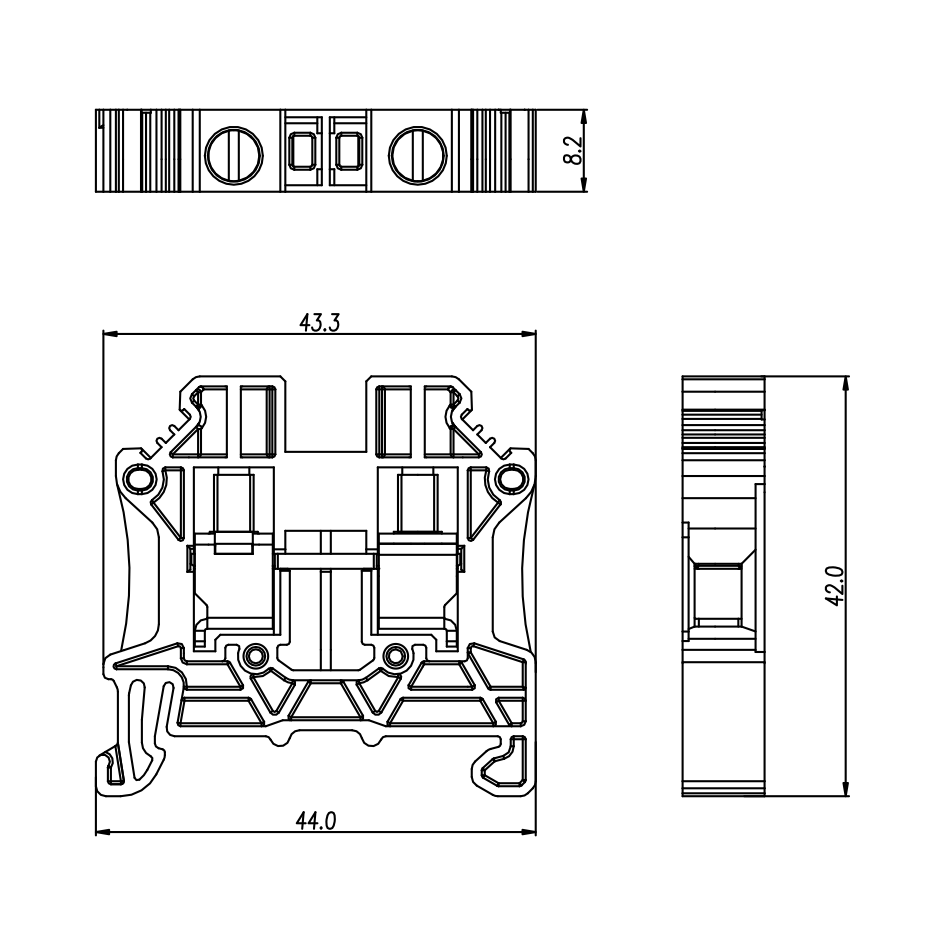

Dimensions
PDF Page



3D Model
