WJ15EDGRHCM-THR-3.5

PCB connector

Rated current: 8 A

Rated voltage: 150 V

Pitch: 3.5 mm

Mounting: Reflow soldering

UL/CUL
Use Group
BCD
Rate Voltage [V]
150-150
Rated Current [A]
8-8
Wire Range [AWG]
/
Dielectric Voltage-Withstand
1.3KV
IEC
Overvoltage Category
IIIIIIII
Contamination Class
322
Rated Voltage [V]
160160250
Rated Current [A]
888
Impulse withstand voltage [KV]
2.52.52.5
Conductor cross section[solid/flexible] [mm2]
/
Material
Insulation Material
LCP
Flame relardant rating
UL94V-0
Conductor Material
Copper alloy
Plating of conductor surface
Sn plated
Other Data
Pitch/Poles [mm]/[P]
3.5/2*2-2*24
Stripping Length [mm]
/
Screw/Torque(Max)[N.m]
/
Operating temperature [℃]
-40~+130
Soldering temperature
285℃/10S
Pin dimensions [mm]
0.8*0.8
PCB Hole Diameter [mm]
?1.4
PCB Opening diagram

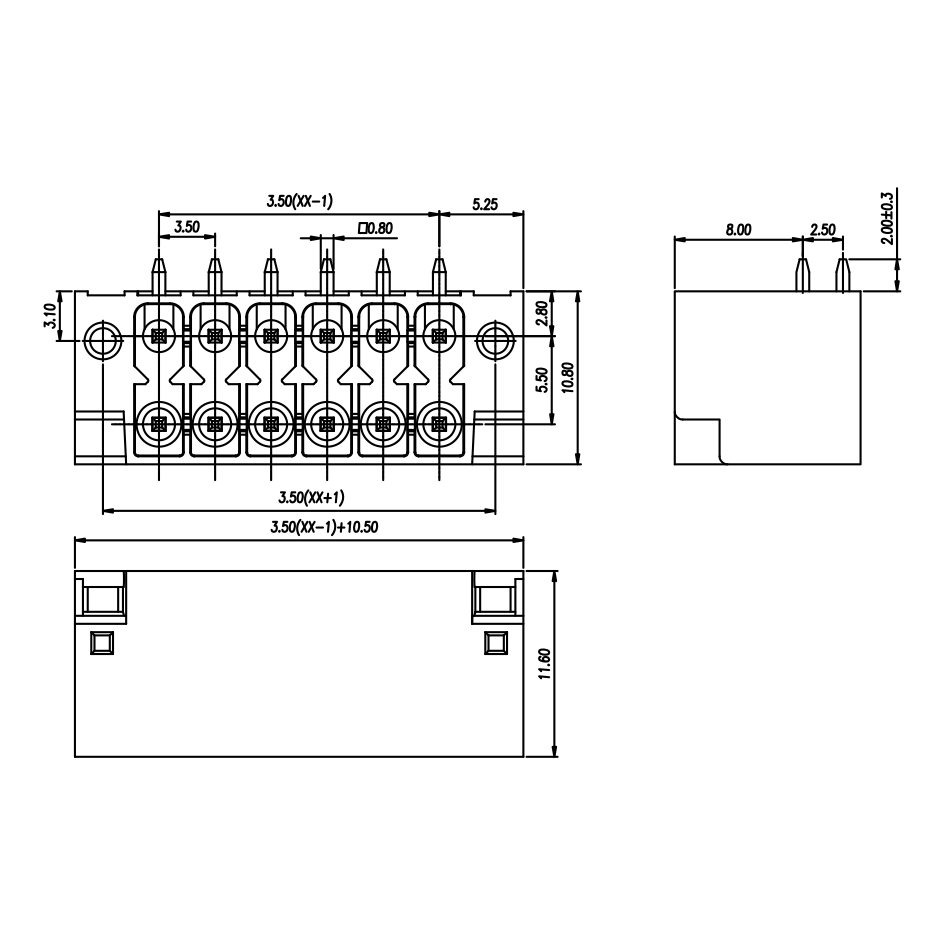

Dimensions
Accessories
PDF Page



3D Model
