WJ2EDGKBM-5.0/5.08

PCB connector

Rated current: 15 A

Rated voltage: 300 V

Wire range: 28-12 AWG

Pitch: 5.0 mm/5.08 mm


UL/CUL
Use Group
BCD
Rate Voltage [V]
300-300
Rated Current [A]
15-10
Wire Range [AWG]
28-12
Dielectric Voltage-Withstand
1.6KV
IEC
Overvoltage Category
IIIIIIII
Contamination Class
322
Rated Voltage [V]
250320630
Rated Current [A]
151515
Impulse withstand voltage [KV]
444
Conductor cross section[solid/flexible] [mm2]
0.2-2.5
Material
Insulation Material
PA66
Flame relardant rating
UL94V-0
Conductor Material
Copper alloy
Plating of conductor surface
Sn plated
Other Data
Pitch/Poles [mm]/[P]
5.0，5.08/2-24
Stripping Length [mm]
7-8
Screw/Torque(Max)[N.m]
M3/0.5
Operating temperature [℃]
-40~+105
Soldering temperature
/
Pin dimensions [mm]
/
PCB Hole Diameter [mm]
/

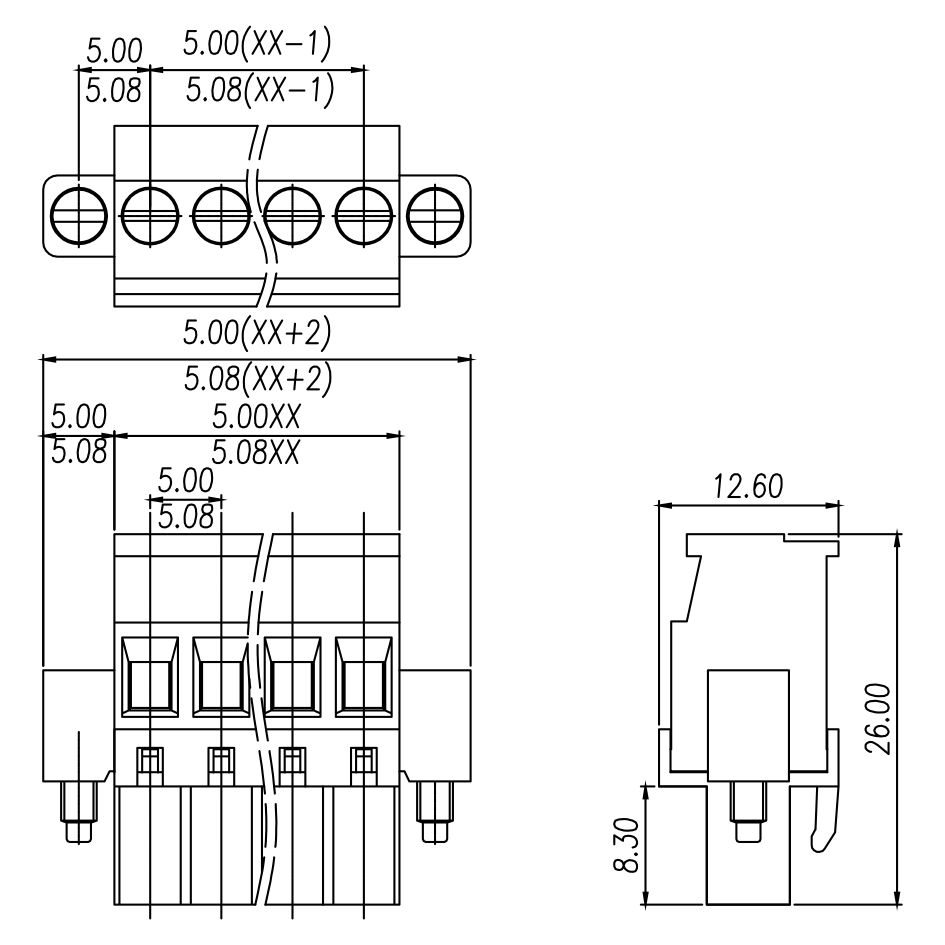

Dimensions
Accessories
