WJE2K500B/WJE2K508B

PCB terminal block

Rated current: 15 A

Rated voltage: 300 V

Wire range: 30-14 AWG

Pitch: 5.0 mm/5.08 mm

Mounting: Wave soldering

UL/CUL
Use Group
BCD
Rate Voltage [V]
300-300
Rated Current [A]
15-10
Wire Range [AWG]
30~14
Dielectric Voltage-Withstand
1.6KV
IEC
Overvoltage Category
IIIIIIII
Contamination Class
322
Rated Voltage [V]
250400630
Rated Current [A]
242424
Impulse withstand voltage [KV]
444
Conductor cross section[solid/flexible] [mm2]
0.5~2.5
Material
Insulation Material
PA66
Flame relardant rating
UL94V-0
Conductor Material
Copper alloy
Plating of conductor surface
Sn plated
Other Data
Pitch/Poles [mm]/[P]
5.0，5.08/2*2-2*24
Stripping Length [mm]
6~7
Screw/Torque(Max)[N.m]
M2.5/0.4
Operating temperature [℃]
-40~+105
Soldering temperature
260℃/5S
Pin dimensions [mm]
0.8*09
PCB Hole Diameter [mm]
?1.5

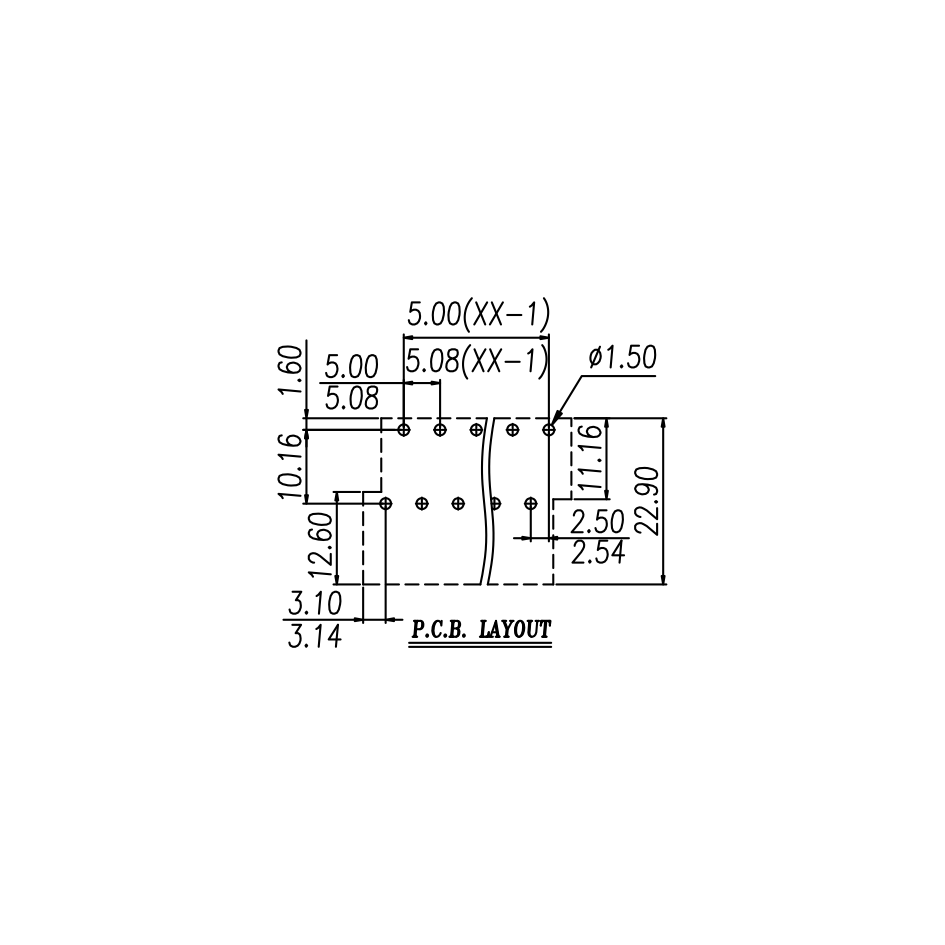

PCB Opening diagram
Dimensions
