M12 Male Panel Mount, PCB Type, Front Fastened, Shielded Pin

Connector Series：M12
Gender：Male
Coding：A,B,C,D
Locking Type：Fix Screw
Mounting Type：Front Fastened
Part No：M12-X**-ST1-M01-BQ*
              X:A,B,C,D Coding
              **:03,04,05...(Pin)
              *:1=M16X1.5    2=PG9,...

Technical Data
Standard
IEC61076-2-101
Ambient Temperatur
-40℃~+105℃
Insulation Resistance
≥100MΩ
Contact Resistance
≤10mΩ
IP Class
IP67
Mating Endurance
>100 Mating Cycles
Material Data
Connector Carriers
PA
Connector Contacts
Copper Alloy With Gold Plated 銅鍍金
Connector Nut/Screw
Copper Alloy With Nickel Plated 銅鍍鎳
Seal/O-Ring
FKM 氟橡膠
Shielding
Ground 接地
Length of the Solder Pin
6mm
Electrical Data & Mechanical Date
Contacts Pin
3/4Pins5Pins6/8Pins12/17Pins
Rated Current
4A4/2A (C-code)2A1.5A
Voltage AC/DC
250V60V30V30V
Contacts Termination
PCB Version
PCB Opening diagram

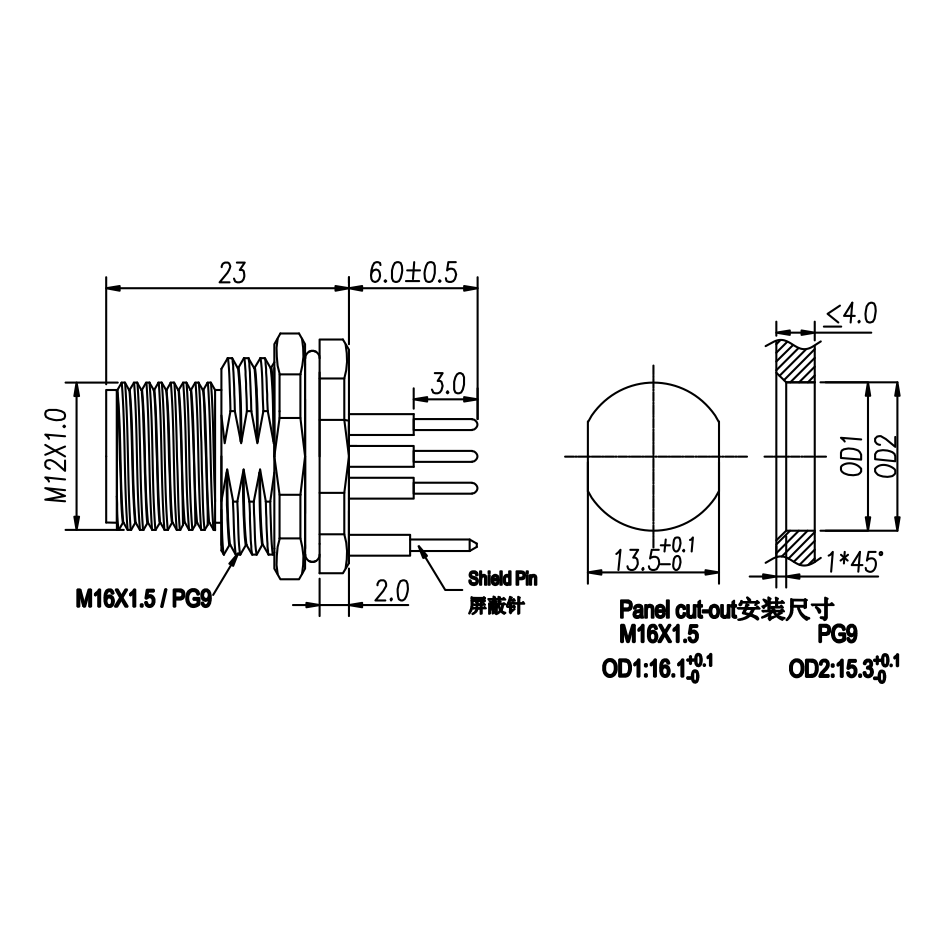

Dimensions
Specification Selection Table
PDF Page



3D Model
